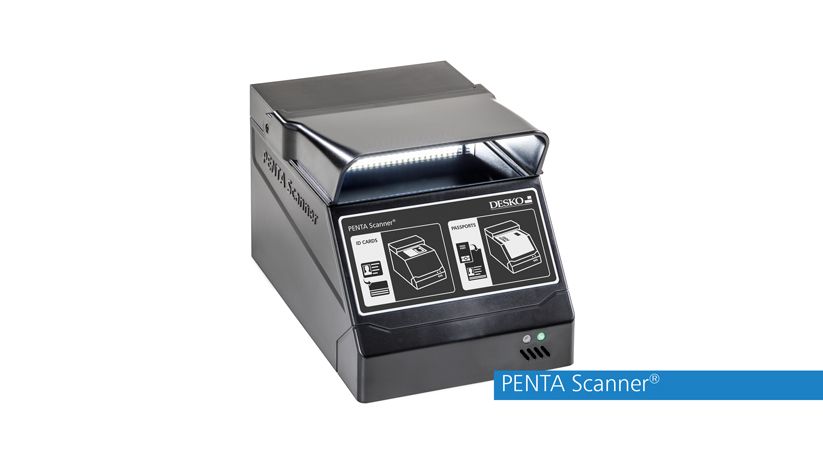

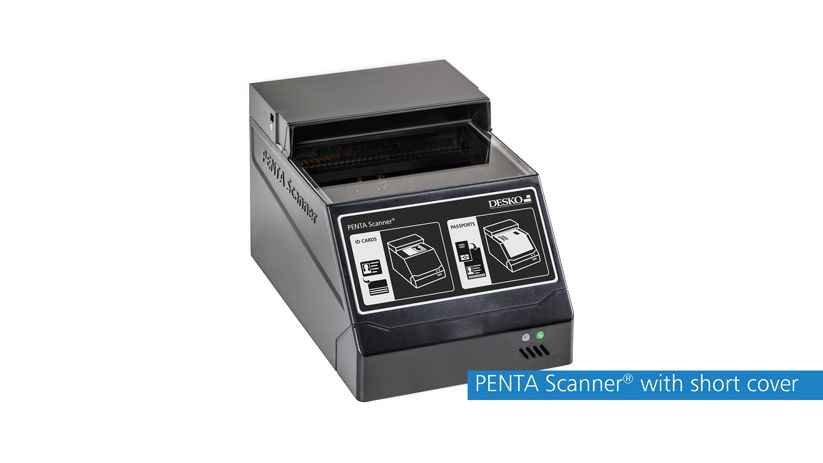

PENTA Scanner®

Multifunctional ID Document Scanner

DESKO’s PENTA Scanner® easily and efficiently scans passports, ID cards, and visas. The PENTA Scanner®, with its multifunctional features such as barcode reading, display, a huge scanning area, and state-of-the-art technology, gives you the tools to meet today’s demanding security requirements and all future security requirements.

DESKO’s PENTA Scanner® is ideal for access control, visitor registration, including image capture, and data capture for contract completion, and more.

FEATURES

STANDARD FEATURES

Machine-Readable Zone (OCR): ISO/IEC 7501-1, ICAO 9303 and ISO 18013-1

Light Sources: IR and visible light

Security Glass: Corning® Gorilla® Glass 3

OPTIONAL FEATURES

Light Sources: UV-A

Barcode: 1D / 2D barcodes from paper or display (smartwatches, smartphones, tablets) e.g. QR Code or PDF 4717

RFID Module: ePassport reading, according to ISO 14443 (A/B), ISO 7816, ICAO 9303

China ID Reading Module: integrated RFID module specifically designed for reading China National ID Card

NFC Ready: ISO 14443 Type A&B including anti-collision and auto-detection

SAM Module: is an integrated secure access module especially for reading SAM cards

DATA OUTPUT

Image Formats: JPG, BMP, PNG

Image Scan: resolution 150 up to 500 dpi

DOCUMENTS

Machine-Readable Zone: e.g. passports, ID cards, visas, drivers´ licenses

Barcode: e.g. boarding passes, QR codes

RFID Module: e.g. ePassports

NFC: e.g. membership IDs

SAM cards according to standard ISO/IEC 7810:2003 i.e. smart cards in mini SIM format

OPTIONAL EQUIPMENT

Battery Pack: for up to 10 hours of use

Pole Mount: for flexible field installation

Embedded PC: built-in, full functioning Windows PC

SOFTWARE

Our PENTA Scanner® is a full-page scanner developed for OCR reading and image capture of ID documents. With its three different light sources (VIS, IR, UV) it is also suited for the integration into an ID document verification or authentication application.

TECHNICAL

DIMENSIONS

Footprint: L 219.9 mm (8.7 inches) × W 150.1 mm (5.9 inches) × H 144.7 mm (5.7 inches)

Scan Window: L 94 mm (3.7 inches) × W 131 mm (5.2 inches)

CONNECTIVITY

Host Interface: USB

OTHER

Vcc: 5V +/- 5%

Icc: max. 2.5 A

Light Sources:   IR and visible light (standard)

UV-A (optional)

VIDEO

CHECK OUT OUR PENTA TECHNOLOGY PLATFORM

With DESKO’s flexible PENTA platform, you can create a PENTA device that meets all your specifications.

It’s easy to do:

  1. Choose from features like barcode or mag. stripe reading, RFID, NFC, multicolor touch display, and more.
  2. Tell us how you want your PENTA scanner.
  3. And we will build a PENTA Scanner according to your specifications.
